Caterpillar spare part overlay motor grader blade 9W2297 manufacturer from China Ningbo Yuanda Machinery Co., Ltd.

Caterpillar spare part overlay motor grader blade 9W2297

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land

Packing: pallet

Brand Name: Caterpillar

Color:: Yellow

Material:: High carbon steel or boron ...

Production Capacity: 500Tons / month

Delivery Date: 30-60days, depend on your q...

Model:: 9W2297

Technique:: Steel rolling

Hardness:: HB260~320 or HB380~450

Grader blade 9W2297 for Caterpillar motor grader
Material:High carbon steel or boron steel
Hardness:HB260~320 or HB380~450

Caterpillar spare part overlay motor grader blade 9W2297

We specialized in manufacturing various bucket tooth for all brands of Motor grader, Bulldozers,Excavator,Loader and Scraper.
Suitable for all brands of dozers, and could make as customer's sample or drawing.
After quenching and tempering heat treatment, the mechanical properties could reach the internationsl standard.

Our prodcuts are built to deliver superior performance and long wear life which can make a real difference in your applications.

Caterpillar motor grader blade 9W2297:
1) Part number: 9W2297
2) Material: High carbon steel or boron steel
3) Hardness: HB260~320 or HB380~450
4) Use: Mining
5) Certificate: ISO9001:2008
6) Grader blade range: Thickness from 13mm to 25mm, width from 152mm to 203mm.

Grader Blades & Accessories:
    OEM Replacement & Custom Design
    High Carbon Steel & Boron Steel(Heat Treated)
    Double Bevel curved: 6" (152mm), 8"(203mm)
    Double Bevel Flat: 8"(203mm), 10"(254mm), 11"(280mm), 12"(305mm), 13"(330mm),     16"(406mm)
    Curved Serrated Cutting Edge & Flat Serrated Cutting Edge
    Overlay & Moldboard End Bit
    Scarifer Shank & Teeth

Superiority: High quality.
Good after price.
Reasonable price.
Long wearlife.

For brands: Caterpillar, Komatsu, ESCO, Fiat, Hyundai, Case, Sany etc.

OEM: Make as customer's samples or drawings.

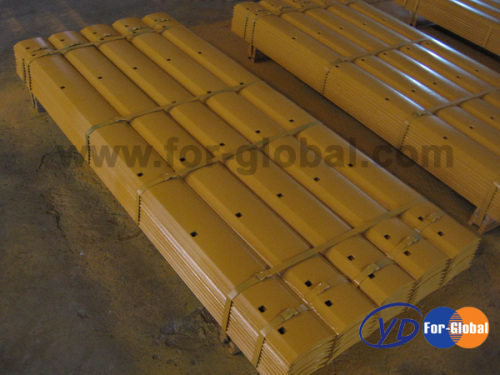

1) Figure:
Caterpillar spare part overlay motor grader blade 9W2297

2) Dimension:

Length(C):	1828	Bolt size:	5/8"
Width(A):	152	Holes:	8
Thickness(B):	13

Part of the grader blade are as follows:

Grader Blades
P/N	Main Dimension (mm)	Holes	Dia.
5D9553	1828X152X16	13	5/8"
5D9554	2133X152X16	15	5/8"
5D9556	1828X152X19	13	5/8"
5D9557	2133X152X19	15	5/8"
5D9558	1828X203X19	13	5/8"
5D9559	2133X203X19	15	5/8"
7D1577	2133X203X19	15	3/4"
7D1949	2438X203X19	17	3/4"
5B5564	1828X152X16	8	5/8"
5B5562	2133X152X16	9	5/8"
4T2237	2438X203X25	17	5/8"
4T2242	2133X203X25	15	5/8"
4T2968	1828X203X16	13	5/8"
5D9732	2438X203X19	17	5/8"
9W2301	2438X152X13	10	5/8"
9W2299	2133X152X13	9	5/8"
4T3007	1828X203X19	13	5/8"
4T3036	2133X203X19	15	5/8"
4T2969	2133X203X16	15	5/8"
5D9562	1828X203X16	13	5/8"
